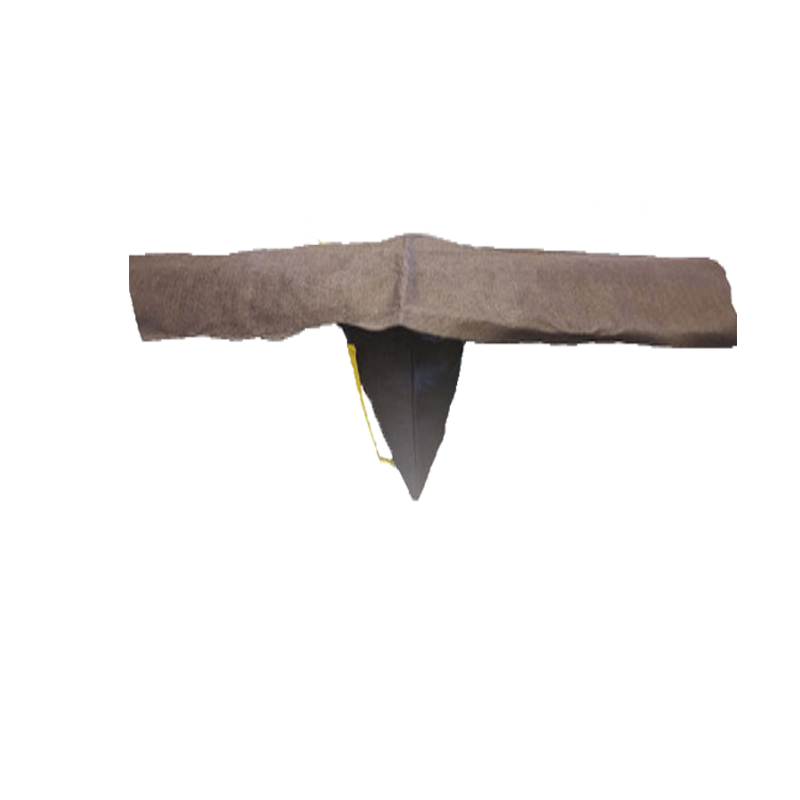

Drain Guard High Flow

  • Drain Guard High Flow are designed for below-grate installation and stay intact in areas with high vehicle traffic.
  • Comply with NPDES and EPA standards (40 CRF 122.26)
  • The deep accumulation pocket collects oil, sediment and other contaminets.

Drain Guard High Flow FAQ

  • I​nexpensive and easy-to-use Best Management Practice (BMP)
  • Comply with strigent NPDES & EPA standards (40 CFR 122.26)
  • Below-grate design stays intact in areas with high vehicle traffic
  • Overflow outlets
  • Custom sizes available
  • Oil-capturing options available
  • 20" deep accumulation pocket collects oil, sediment and other contaminants

Sizes

 Part #               Dimensions                  Capture Rating       3595HF              48"X36"                                40 lbs         3596HF              60"x60"                                40 lbs

Material Specs

PROPERTIES                   ASTM TEST                   VALUE
Grab Tensil                         D4632                         200 lbs
CBR Puncture                     D6241                         675 lbs
Permittivity                         D4491                         2.10 sec
Flow Rate                            D4491                         145 gm
A.O.S (U.S. sieve no.)         D4750                          40
UV Stability 500 hours      D4355                          90%

  1. Remove catch basin grate
  2. Clean dirt and debris from grating ledge
  3. DP drain guard over the catch basin opening with the bag side of the filter inside the basin
  4. Loop safety strap threw bag's lift straps and secure to drain gate
  5. Replace the grating, securing the filter's fabric between the grating and the catch basin
  6. Cut the excess fabric off with a blade of knife if desired.
  7. Tighten safety strap
  • The level of accumulated sediment can be determined by probing with a measuring stick.
  • When the unit is approximately half full, it should be emptied, cleaned and reinstalled.
  • Drain guard may be heavy and require more than one person to lift out
  • The drain guard should be inspected on a regular basis.
